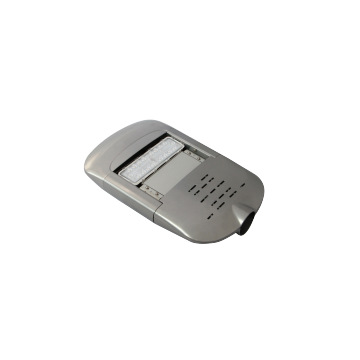

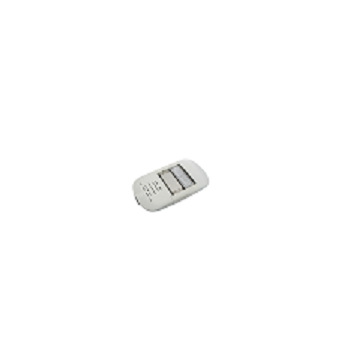

Double IP68 Modular LED Road Lights 40W
| Model |
GWT1A-40W |
| LED QTY |
18 chips |
| Operating Voltage |
AC 90V-305V |
| Power Efficiency |
≥91% |
| Power Factor |
0.95 |
| System Power |
40W |
Luminous Flux of Lights
|
PHILIPS-LUMILEDS Rebel ES 95LM/W |
| 3800LM |
| Temperature of Junctions(TJ) |
<70℃ |
| Light Distribution Curve |
Bat-wing |
| Peak Lighting Angle |
125° |
| Color Temperature |
4100K,5300K,6000K |
| CRI |
Ra≥70 |
| Lighting Source |
Philips-Lumileds Rebel ES |
| Working Environment |
Between－40℃～＋50℃, 10%～90%RH |
| Storage Temperature |
Between－40℃～＋50℃ |
| LED life span |
＞50000 Hours |
| Body and shell materials |
Aluminum Alloy |
| Dimensions(mm) |
585*430*170mm |
| Tunder Protection |
10KV |
| Net Weight |
6.5Kgs |
| Certificates |
TUV Rheinland / CE / ROHS |
| Wind Index |
Force 12 |
| IP Protection Grade |
LED Module IP68, Power Supply IP67(UL listed) |
| Quality Assurance /Warranty |
5 years |
| Remarks |
Technical factors will be changed accordingly based on the LEDs used in the lights.
The installation of the connector: Φ60mm; for other sizes, adapters are needed. |
